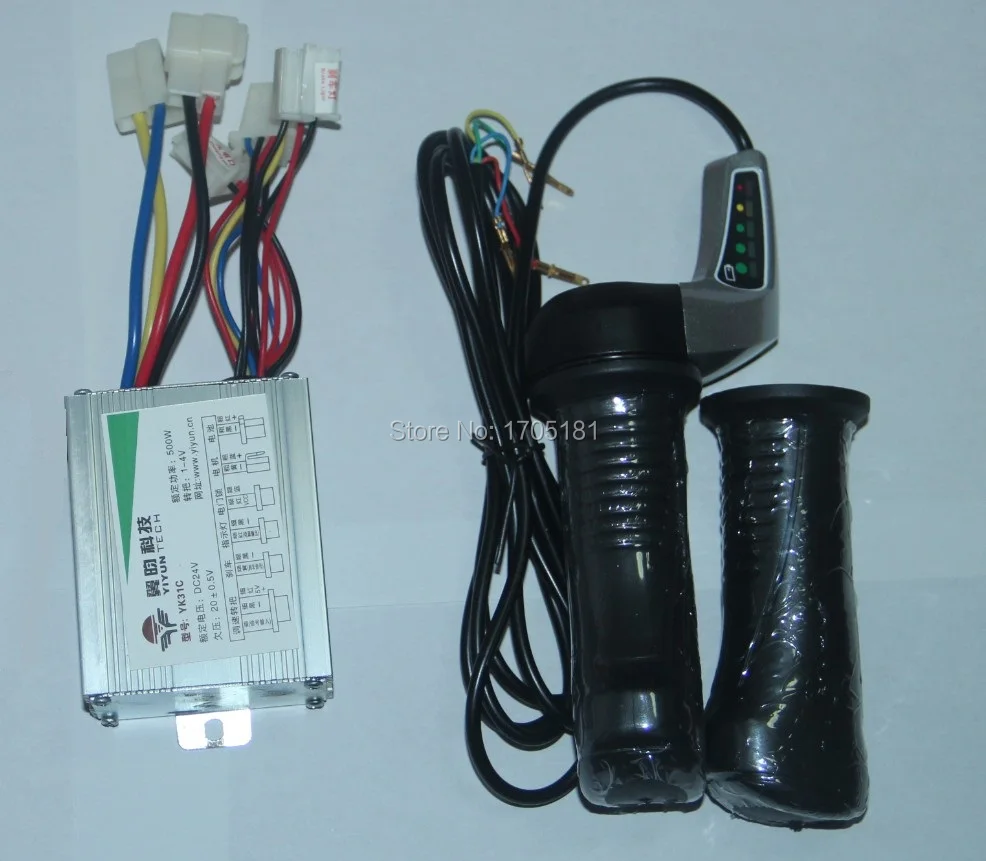

24V 500W DC motor Brushed speed Controller Electric Scooter Throttle Twist Grips Power Display controlador de motor Note:this item include 24V 500W motor brushed controller and 24V throttle twist grip Wu Xing brand Brushed Controller: 100% Brand New Motor brushed controller for Electric bicycle & scooter Rated voltage: dc24 v Current limit : 28A Rated power: 500 w matching motor: dc brushed motor Under Voltage Protection: 20V Throttle: Electric Bike scooter twist throttle accelerator with power display, 5Led battery indicator. Throttle Works Voltage: DC5V Speed Adjusting Signal:0.8V-4.3V Power display Voltage: DC 24V Power display: Normal: 23V above, 3 Led Green Half: 23V ~ 20V, Led Yellow Empty: 20V or less, Led Red Rotation angle: 0 °~ 70 ° Working temperature: -20 ~ +50 Fits standard 7/8 inches(22.2mm) handle bars Cable length is approximately59 inches (1.5m) Qty: 2PCS (1 Twist throttle grip and 1normal grip (matching thumb grip)) Controller Wires Interface Definition Battery :Thick Black (Power Negative) /Thick Red (Power Positive) Motor :Thick Yellow (Motor Negative) /Thick Blue (Motor Positive) Ignition Switch :Thin Red(VCC)/Thin Blue Indicator : Thin red (Indicator power output) /thin black (indicator negative) Brake :thin yellow (Brake signal)/thin black(Negative Power) Speed governor :Thin blue(Speed handlebar Signal input) /Thin black (Negtive Power) /thin red(5V Positive Power) Charge Port : Thin red (charge input power Positive) /thin black (Power negative) Brake Light: Thin red (power Positive) /thin black (Power negative) Throttle Wiring Diagram: Throttle Controller Description Red connects to Red Voltage 4.3 to 5.0 Volts Blue connects to Black or Yellow Ground Green connects to Green, Blue or White Speed Adjusting Signal (0.8 to 4.3 Volts) Yellow connects to Power positive Power display Package Including 1 x24V 500W Motor Brushed Controller 1 x Throttle Grip (with oneNormal Grip)
